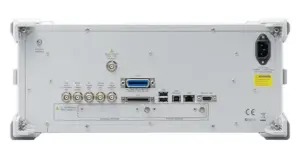

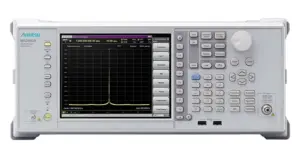

Anritsu Spectrum AnalyzerSignal Analyzer MS2840A

– Frequency range of 9 kHz to 3.6 GHz/6 GHz/26.5 GHz/44.5 GHz; 44.5 GHz max. built-in preamp option
– Best close-in phase noise performance in middle range signal analyzer/spectrum analyzer:
–123 dBc/Hz (at 1 GHz center frequency, 10 kHz offset frequency with all frequency models)
–138 dBc/Hz (at 1 GHz center frequency, 10 kHz offset frequency with 3.6 GHz and 6 GHz models, meas.)
–140 dBc/Hz (at 150 MHz center frequency, 10 kHz offset frequency with 3.6 GHz and 6 GHz models, meas.)
– Wide dynamic range measurement of either 50 GHz to 75 GHz, or 60 GHz to 90 GHz frequency bands using High Performance – — Waveguide Mixer MA2806A/MA2808A (with 26.5 GHz and 44.5 GHz models)
– Measurements up to 325 GHz using External Mixer (Harmonic Mixer) MA2740C/MA2750C Series (with 26.5 GHz and 44.5 GHz models)
– 31.25 MHz analysis bandwidth (standard); 125 MHz max. (option)
– All-in-one solution with built-in signal generator option supports TRx tests (with 3.6 GHz and 6 GHz models)
